Shelly PRO 2PM
Produktinformationen "Shelly PRO 2PM"
2 channel DIN rail relay switch with power metering and Wi-Fi, LAN and Bluetooth connection
Professional 2 channel relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control and precise power management. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms.

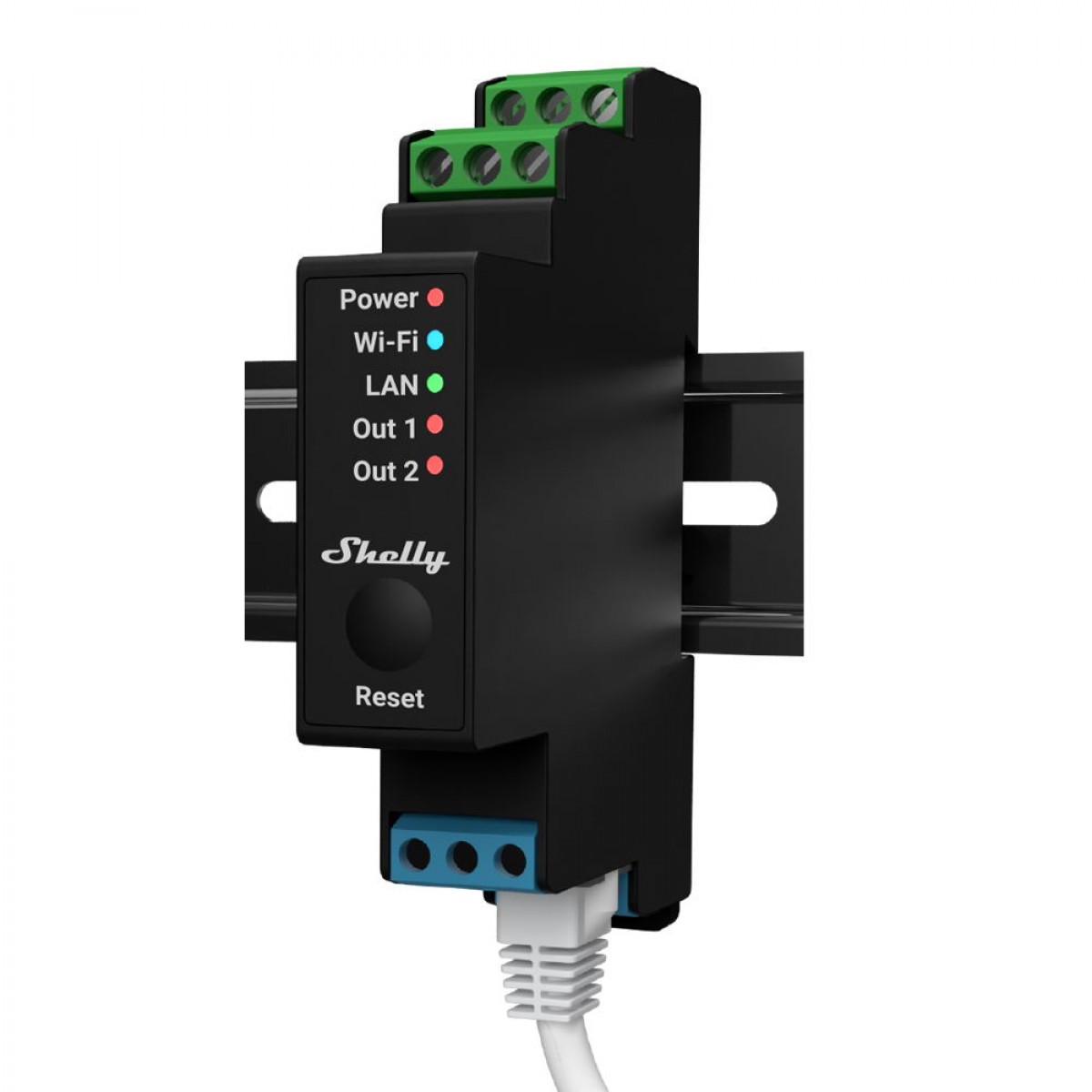

Shelly Pro 2PM
- LAN, Wi-Fi, and Bluetooth connection
- 2 output, 16A each. Total device maximum of 25A
- Power metering
- DIN rail mountable
- Roller Shutter - Requires upcoming firmware update of the device.
| POWER | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | 2 outputs, 16A each. Total device maximum of 25A |
| Power supply DC | 12V DC ±10% |
| SPECIAL FUNCTIONS | |
| Roller shutter mode | Requires upcoming firmware update of the device. |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts(mJs) | Yes |
| Channels | 2 Channel |
| Operational temperature | 0°C to + 40 °C |
| Device power consumption | < 4 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| Ethernet | Yes |
| DIMENSIONS | |
| Size | 18,5mm x 89,5mm x 68,5mm |
