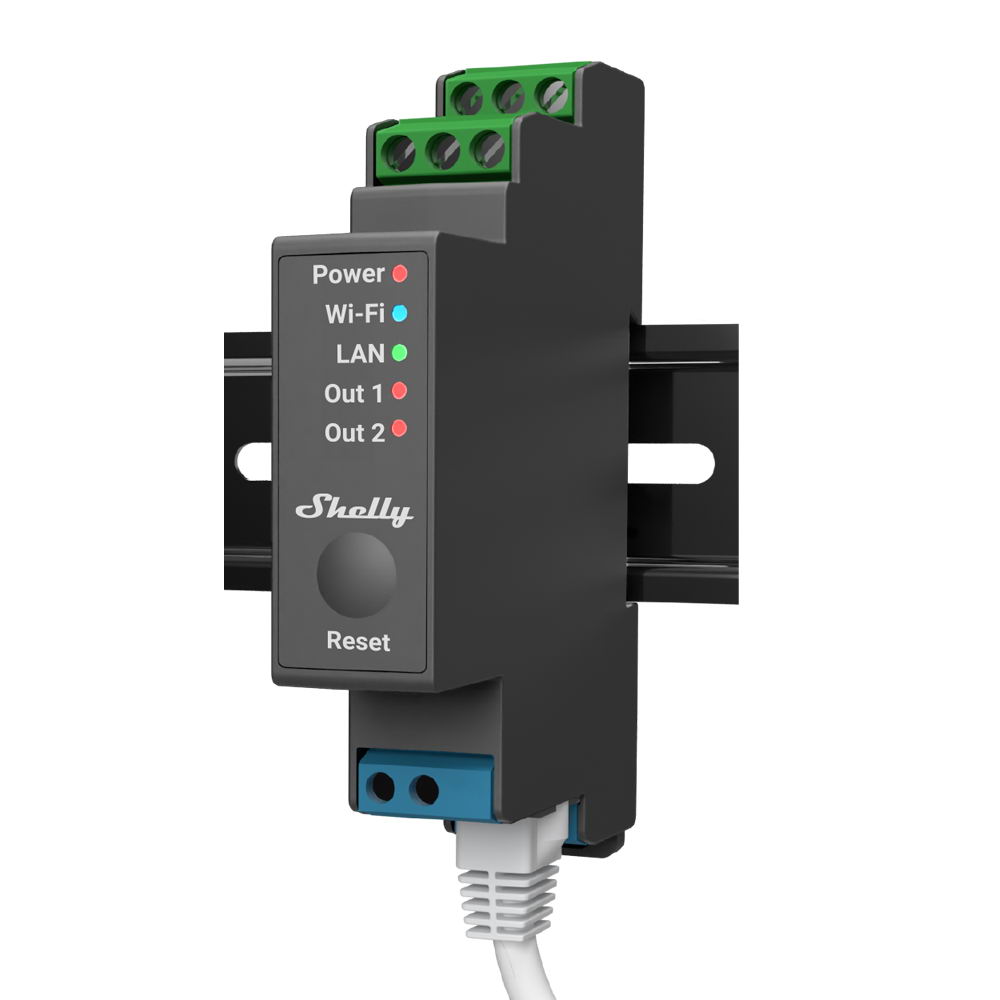

Shelly PRO 2
Produktinformationen "Shelly PRO 2"
2 channels DIN rail relay switch with Wi-Fi, LAN and Bluetooth connection
Professional 2 channels relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms.
Shelly Pro 2
- LAN, Wi-Fi, and Bluetooth connection
- 2 output, 16A each. Total device maximum of 25A
- Dry contact
- DIN rail mountable
- 2 phases control
POWER | |
Power supply AC | 110-240V ±10%, 50/60Hz |
Maximum load | up to 16A per channel with up to 25A for the whole device |
Power supply DC | no support |
SPECIAL FUNCTIONS | |
Roller shutter mode | No |
Device temperature protection | Yes |
Overload protection | Yes |
Power measurement | No |
FEATURES | |
HTTP/HTTPS webhooks | Yes |
Custom scripts(mJs) | Yes |
Channels | 2 Channel |
Operational temperature | 0°C to + 40 °C |
Device power consumption | < 4 W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY | |
Wireless | Yes |
Wi-Fi Protocol | 802.11 b/g/n |
Wi-Fi Radio frequency | 2412 - 2484 MHz |
Wi-Fi Radio signal power | 1mW |
Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Bluetooth | Yes |
Ethernet | Yes |
DIMENSIONS | |
Size | 18,5mm x89,5mm x 68,5mm |
